Report, visualize, and explore the information behind your SmartPlant P&ID systems.

Engdata IQ provides unrivaled capabilities for leveraging the data behind your SmartPlant systems. With a rapid, user-friendly, and powerful report builder, your data has never been more accessible. With features like instantaneous symbol reports, a fast SQL based Line-List, and rapid drawing visualization, Engdata IQ quickly becomes an integral part of your P&ID development workflow.

Significantly reduce man hours spent opening drawings and searching for information - IQ rapidly navigates between your data and design.

SQL-based reporting and business-intelligence gathering is the industry norm - IQ allows you to build, and more importantly maintain, your queries, with a consistent reporting methodology across the SmartPlant suite.

Introducing Engdata IQ


(Best viewed at 1920 x 1080p - Direct Download)



A small sample of Engdata IQ's capabilitiesfor P&ID:

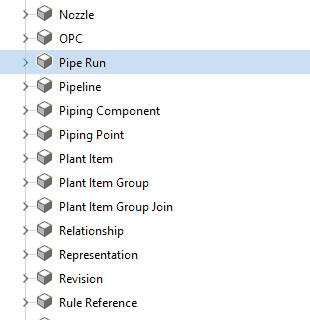

EXPLORE  While each SmartPlant application has a unique data model, Engdata IQ leverages the commonalities to expose the objects, relationships, and properties that matter.  With powerful look-aheads, and multiple views, IQ lets you explore your data with ease and understanding.

EXPLORE

While each SmartPlant application has a unique data model, Engdata IQ leverages the commonalities to expose the objects, relationships, and properties that matter.

With powerful look-aheads, and multiple views, IQ lets you explore your data with ease and understanding.

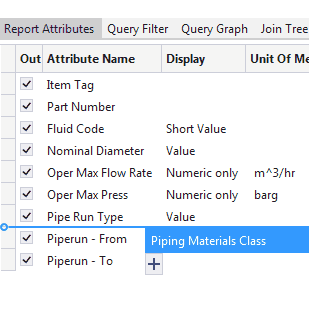

DRAG, DROP, RUN  Create complex reports effortlessly - with search and filtering to find exactly the information you need.   Now you can dive into your data.   From quick ad-hoc queries, to powerful, formatted reports - IQ delivers.

DRAG, DROP, RUN

Create complex reports effortlessly - with search and filtering to find exactly the information you need.

Now you can dive into your data.

From quick ad-hoc queries, to powerful, formatted reports - IQ delivers.

CONNECTED REPORTS  Export your query to Excel, Access, or SQL. Engdata IQ can build the intelligence into the file so that everyone can access real-time information, without additional software or training.

CONNECTED REPORTS

Export your query to Excel, Access, or SQL. Engdata IQ can build the intelligence into the file so that everyone can access real-time information, without additional software or training.

Review design & Data  Instantly open drawings and review both the design and the data behind your P&IDs. Search is available for both the properties and drawing hierarchy.

Review design & Data

Instantly open drawings and review both the design and the data behind your P&IDs. Search is available for both the properties and drawing hierarchy.

Visualize results  Instantly show and highlight query results on the P&ID drawings.

Visualize results

Instantly show and highlight query results on the P&ID drawings.

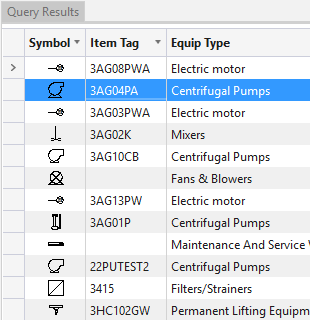

Symbol Report  A fast, configurable, and searchable Symbol report that can be exported to Excel in seconds. Report across both the catalog and usage data.

Symbol Report

A fast, configurable, and searchable Symbol report that can be exported to Excel in seconds. Report across both the catalog and usage data.

LeVERAGE Your Existing EDE Views & Filters  Instantly turn your existing EDE views and Filters into SQL-based reports.

LeVERAGE Your Existing EDE Views & Filters

Instantly turn your existing EDE views and Filters into SQL-based reports.

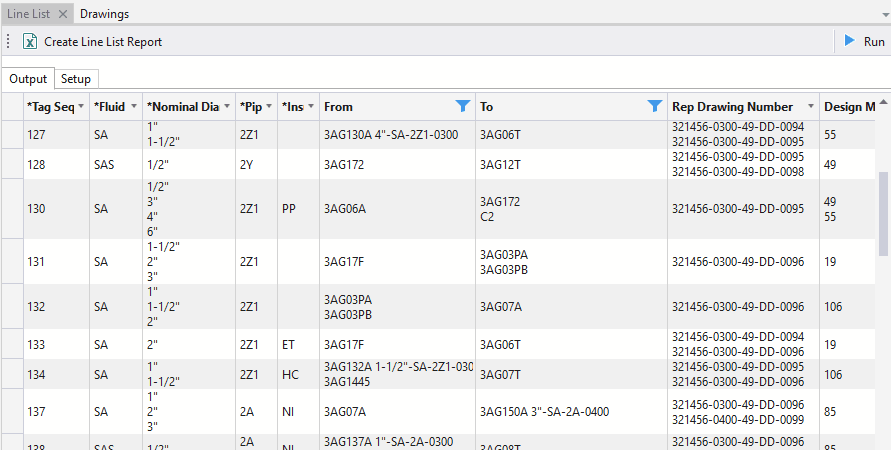

Line List

Engdata IQ provides a lightning fast, highly configurable Line List that runs in pure SQL (no macros or API calls required). IQ allows you to quickly highlight the line, and all from/to items directly on the P&ID.

And much more!


Watch our in-depth video showing IQ for P&ID in action:


(1920 x 1080p - Direct Download)

Engineering Software, Refined

Engdata IQ is the culmination of years of real-world experience with SmartPlant and is built on a robust, modern framework specifically designed for working with data-driven toolsets.

IQ was passionately developed with the goal of providing projects with maximized access and unsurpassed discoverability of their data.

  • IQ uses no SmartPlant APIs or licenses, all that is required is read-access to the databases and project folders.
  • IQ is completely version and database independent - work with Oracle and SQL server simultaneously across legacy and current SmartPlant projects.
  • Build once, report anywhere - re-use your reports across all projects.
  • Amazingly powerful and intuitive user experience that is immediately discoverable.



The technology behind IQ:

  • The Engdata IQ framework was designed from the ground-up with modern .Net technologies.
  • IQ is fully modular and all applications and functionality can be easily configured.
  • Every aspect of IQ is asynchronous and multi-threaded - there is never any waiting for operations to complete.
  • Rock solid stability - IQ uses a multi-process isolation architecture when dealing with any SmartPlant, or outside, applications.
  • Development best practices such as MVVM and fully tested code - software you can trust.

Engdata IQ is not simply concatenating strings to form SQL - behind IQ is fully developed graph and object relational engine that understands and optimizes the connections between your objects, data, and applications. SQL is just one possible output.
