Sophisticated Smart 3D reporting - made easy.

Engdata IQ provides unrivaled capabilities for leveraging the data behind your SmartPlant systems. With a rapid, user-friendly, and powerful report builder, your data has never been more accessible. With the ability to quickly explore the relationships and information within your model, Engdata IQ will become an integral part of your Smart 3D work practices.

While SQL-based querying has long been an important part of Smart 3D (for advanced filtering and reporting), there has never been an easy method to generate these queries - until now!

IQ enables you to turn a complex reporting requirement into actionable information within minutes rather than days.

Introducing Engdata IQ


(Best viewed at 1920 x 1080p - Direct Download)



A small sample of Engdata IQ's capabilities for Smart 3D:

EXPLORE  With powerful look-ahead features, Engdata IQ exposes the objects, relationships, and properties that matter. Report across your model, catalog, and configuration.   Now you can dive into your data.

EXPLORE

With powerful look-ahead features, Engdata IQ exposes the objects, relationships, and properties that matter. Report across your model, catalog, and configuration.

Now you can dive into your data.

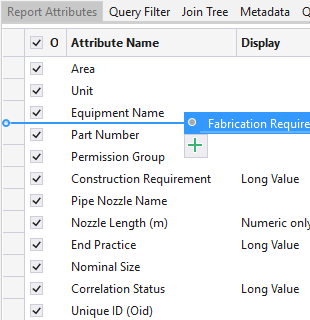

DRAG, DROP, Query.  Create fast, complex reports effortlessly - with search and filtering to find exactly the information you need.  From quick ad-hoc queries, to powerful, formatted reports - IQ delivers.

DRAG, DROP, Query.

Create fast, complex reports effortlessly - with search and filtering to find exactly the information you need.

From quick ad-hoc queries, to powerful, formatted reports - IQ delivers.

CONNECTED REPORTS  Export your query to Excel, Access, or SQL. Engdata IQ can build the intelligence into the file so that everyone can access real-time information, without additional software or training.

CONNECTED REPORTS

Export your query to Excel, Access, or SQL. Engdata IQ can build the intelligence into the file so that everyone can access real-time information, without additional software or training.

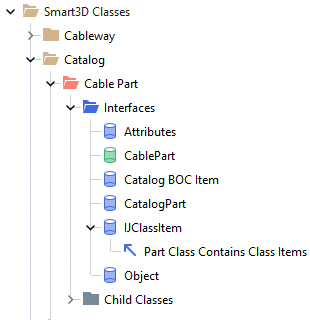

Schema made easy  Never open the metadata/schema browser again. IQ allows you to explore the schema intuitively, to the level of detail required. Jump across relationships to any depth, and see metadata properties.

Schema made easy

Never open the metadata/schema browser again. IQ allows you to explore the schema intuitively, to the level of detail required. Jump across relationships to any depth, and see metadata properties.

Review DrawinGS & Isometrics  Instantly open drawings and review both the design and the data behind your 3D deliverables. With search and filtering of the drawing hierarchy.

Review DrawinGS & Isometrics

Instantly open drawings and review both the design and the data behind your 3D deliverables. With search and filtering of the drawing hierarchy.

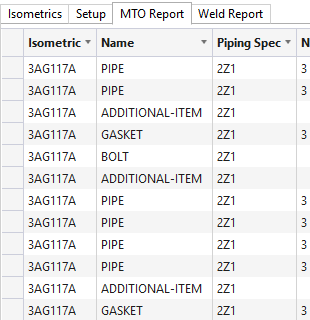

Iso PAckages  Create Isometric packages that automatically extract an MTO and Weld report directly from the associated drawing data.

Iso PAckages

Create Isometric packages that automatically extract an MTO and Weld report directly from the associated drawing data.

And much more!


Watch our in-depth video showing IQ for Smart 3D in action:


(1920 x 1080p - Direct Download)

Engineering Software, Refined

Engdata IQ is the culmination of years of real-world experience with SmartPlant and is built on a robust, modern framework specifically designed for working with data-driven toolsets.

IQ was passionately developed with the goal of providing projects with maximized access and unsurpassed discoverability of their data.

  • IQ uses no SmartPlant APIs or licenses, all that is required is read-access to the databases and project folders.
  • IQ is completely version and database independent - work with Oracle and SQL server simultaneously across legacy and current SmartPlant projects.
  • Build once, report anywhere - re-use your reports across all projects.
  • Amazingly powerful and intuitive user experience that is immediately discoverable.



The technology behind IQ:

  • The Engdata IQ framework was designed from the ground-up with modern .Net technologies.
  • IQ is fully modular and all applications and functionality can be easily configured.
  • Every aspect of IQ is asynchronous and multi-threaded - there is never any waiting for operations to complete.
  • Rock solid stability - IQ uses a multi-process isolation architecture when dealing with any SmartPlant, or outside, applications.
  • Development best practices such as MVVM and fully tested code - software you can trust.

Engdata IQ is not simply concatenating strings to form SQL - behind IQ is fully developed graph and object relational engine that understands and optimizes the connections between your objects, data, and applications. SQL is just one possible output.







Thank you from Engdata
